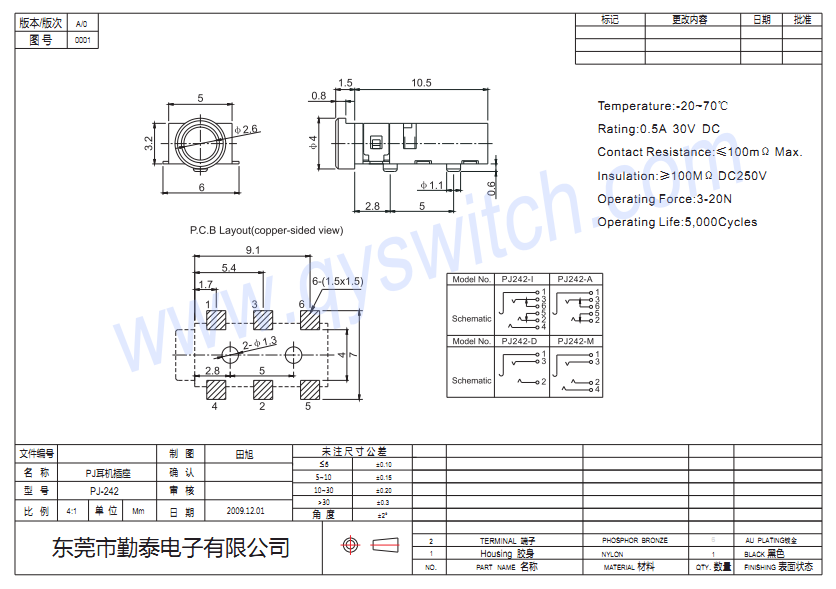

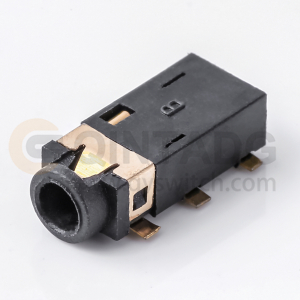

PJ-242

额定负荷Rated Load: DC 30V 0.5A
插拔力Insertion and Extraction Fo: 3N~30N
耐压Withstand Voltage: 500V,AC/min
电气寿命Life: 5000次
温度范围Temperature: -40~+85℃
绝缘电阻Insulation Resistance:: ≥100MΩ
接触电阻Contact Resistance:: ≤0.03mmΩ
