Product Detail

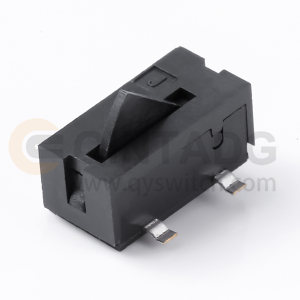

DS-105S
Share to：

DS-105S

绝缘电阻Insulation Resistance：： 100MΩ min.100V DC
接触电阻Contact Resistance：： 100m Ω max.
额定电流Rating： 20mA DC 16V
介电强度Dielectric strength： 250V AC for 1 min
行程Travel： 0.30±0.20mm
操作力度Operating fore： ≦30gf
寿命Life time： 50,000 cycles
工作温度范围Operating temperature ra： -30℃to+85℃
