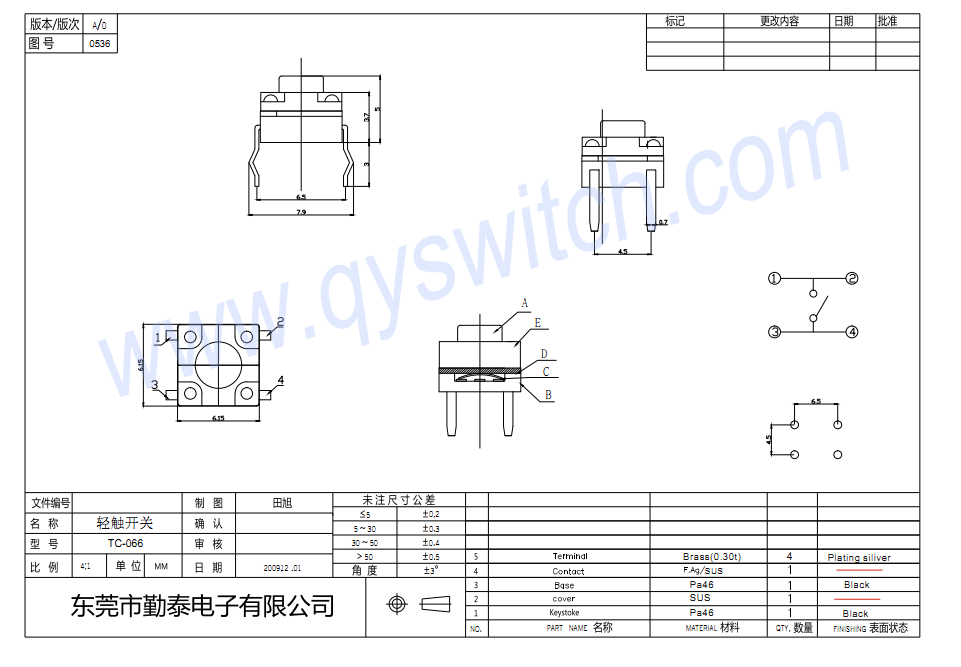

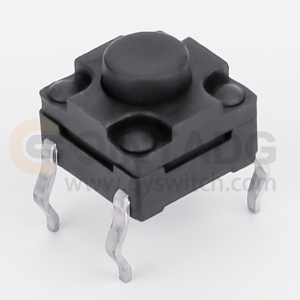

TC-066

绝缘电阻Insulation Resistance:: 100MΩ min.100V DC
接触电阻Contact Resistance:: 100m Ω max.
额定电流Rating: 50mA DC 12V
介电强度Dielectric strength: 250V AC for 1 min
行程Travel: 0.15±0.05mm
操作力度Operating fore: 180gf /250gf/300gf
寿命Life time: 100,000 cycles
工作温度范围Operating temperature ra: -30℃to+85℃
