DMI-01A
Share to：

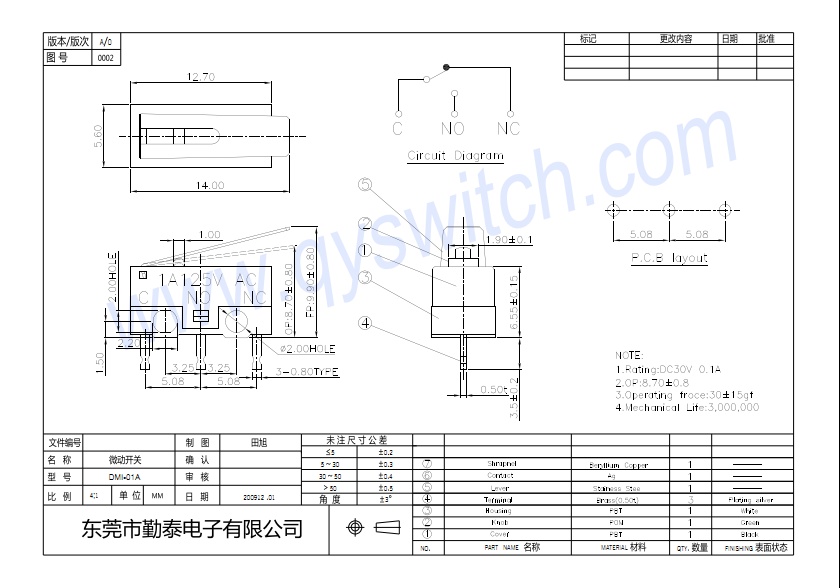

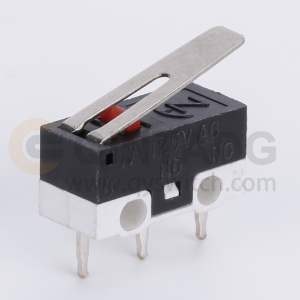

DMI-01A

绝缘电阻Insulation Resistance：： 100MΩ min.100V DC
接触电阻Contact Resistance：： 100m Ω max.
额定电流Rating： AC 125V 1A / DC 30V 0.1A
介电强度Dielectric strength： 250V AC for 1 min
操作力度Operating fore： 80±15gf
寿命Life time： 50,000 cycles
工作温度范围Operating temperature ra： -30℃to+85℃
